Inventory

• ELECTRONICS: HART
• STRUCTURE : 316LSS PROCESS CONNECTION AND DIAPHRAGM, SILICONE FILL FLUID, 1/2 NPT EXTERNAL, 1/4 NPT INTERNAL THREAD CONN, FLAMEPROOF CERTIFICATION
• SPAN LIMITS: 0.5 AND 200 PSI
• CONDUIT : 1/2 NPT CONDUIT CONNECTION
• HOUSING : ALUMINUM
• ELECTRICAL : FM MULTIPLE CERTIFICATIONS

  • FA- I,II,III DIV.1 INTRINSICALLY SAFE
  • FN- I,II,III DIV. 2 NON-INCENDIVE
  • FD- I,II,III DIV 1 EXPLOSION PROOF AND DUST IGNITION PROOF

• OPTIONS : 316SS MOUNTING BRACKET AND BOLTS, DIGITAL INDICATOR

• Set Point Range: 2-120 psig, 0.14-8 bar,14-800 kPa
• Supply Pressure (Maximum): 300 psig, 20 bar, 2000 kPa
• Port Size: 1/4"
• Port Thread: NPT
• Actuator: Screw
• Material of Construction:

  • Body & Housing: Epoxy Coated Aluminum
  • Trim: Zinc Plated Steel, Stainless Steel, Nickel Plated Steel,
  • Elastomers: Nitrile

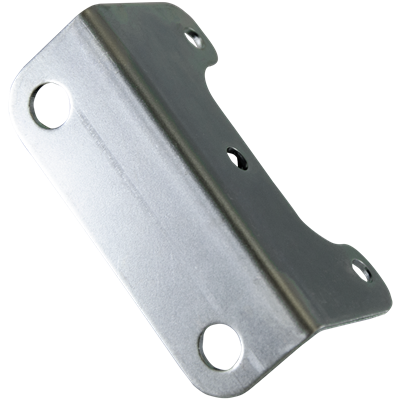

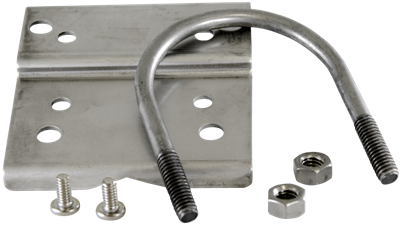

• Mounting Bracket: for Model 10, 10BP, 14, 15, 20, 22, 25, 90, 91

  • 09921: Zinc Plated Steel
  • 14523: 316 Stainless Steel

TopWorx Valve Indication-Switch | Enclosure Tropicalized aluminum | Bus/Sensor (2) GO Switches SPDT hermetic seal | Area Classification Explosionproof/flameproof | Visual Display Standard 90? Green OPEN, Red CLOSED | Shaft NAMUR 316 stainless steel | Conduit Entries (2) 3/4"npt | O-Rings Buna-N | Pilot (1) 110Vac pilot, 1.1W, fail OPEN/CLOSED | Spool Valve Aluminum hard coat anodized - ASCO | Valve Cv 1.06Cv (1/4" NPT Ports) | Manual Override Single Pushbutton Momentary/Latching

TOPWORX VALVE POSITION SWITCH (GOSWITCH) | ENCLOSURE: TROPICALIZED ALUMINUM | BUS/SENSOR: (2) GO SWITCHES SPDT; 4A/120VAC;3A/24VDC HERMETICALLY SEALED | AREA CLASSIFICATION: NON-INCENDIVE; CL I DIV 2, GRPS A-D

VAC 200E Electro Pneumatic Positioner | D1 Namur Spindle | 90 Degree Front Cover | Indicating Arrow | C1 90° & 180°, Linear + split range Cam | Spindles Can be Exchanged for different Mounting Options

• Set Point Range: 0.5-30 psig, 0.03-2 bar, 3-200 kPa
• Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
• Pipe Size: 1/4" NPT
• Materials of Construction:

  • Body & Housing: Aluminum
  • Trim: Zinc Plated Steel, Brass
  • Diaphragms: Buna N on Dacron

• Set Point Range: 0-10 psig, 0-0.7 bar, 0-70 kPa
• Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
• Pipe Size: 1/4" NPT
• Materials of Construction:

  • Body & Housing: Aluminum
  • Trim: Zinc Plated Steel, Brass
  • Diaphragms: Buna N on Dacron

• Set Point Range: 1-60 psig, 0.1-4 bar, 10-400 kPa
• Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
• Pipe Size: 1/4" NPT
• Materials of Construction:

  • Body & Housing: Aluminum
  • Trim: Zinc Plated Steel, Brass
  • Diaphragms: Buna N on Dacron

• Set Point Range: 2-150 psig, 0.1-10 bar, 15-1000 kPa
• Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
• Pipe Size: 1/4" NPT
• Materials of Construction:

  • Body & Housing: Aluminum
  • Trim: Zinc Plated Steel, Brass
  • Diaphragms: Buna N on Dacron

• Set Point Range: 2-150 psig, 0.1-10 bar, 15-1000 kPa
• Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
• Pipe Size: 3/8" NPT
• Materials of Construction:

  • Body & Housing: Aluminum
  • Trim: Zinc Plated Steel , Brass
  • Diaphragms: Buna N on Dacron

ASCO Red Hat Solenoid | Type & Operation: 3-Way, Normally Closed | Size / Orifice: 1/4" NPT / 3/32" | Flow: Cv 0.12 | Pressure (Min/Max PSI): 0/150 | Approvals: UL 104R Gen. Pur., CSA | Voltage: 120V/60Hz | Body Material: Stainless Steel | Optional Features: None | Stock #: 20941

• Set Point Range: 1-60 psig, 0.1-4 bar, 10-400 kPa
• Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
• Pipe Size: 3/8" NPT
• Materials of Construction:

  • Body & Housing: Aluminum
  • Trim: Zinc Plated Steel, Brass
  • Diaphragms: Buna N on Dacron

• Ratio: 1:1
• Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
• Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
• Port Size: 3/4" NPT
• Materials of Construction:

  • Body & Housing: Aluminum
  • Trim: Zinc Plated Steel, Brass
  • Elastomers: Nitrile on Dacron

• Ratio -  1:1
• Port Size -  3/8" NPT
• Port Thread -  NPT
• Elastomers -  Fluorocarbon (Viton)
• Relief -  Relieving
• Output Options -  None
• Increased Adjustability -  None
• Exhaust Port -  Tapped Exhaust

• Ratio: 1:6
• Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
• Pipe Size: 1/4" NPT
• Pipe Thread: NPT
• Ambient Temperature: -40°F to +200° (-40°C to +93.3°C)
• Material of Construction:

  • Body & Housing: Aluminum
  • Trim: Zinc Plated Steel, Brass
  • Diaphragms: Nitrile on Dacron Fabric

• Set Point Range: 1-60 psig, 0.1-4 bar, 10-400 kPa
• Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
• Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
• Port Size: 1/4" NPT
• Materials of Construction:

  • Body & Housing: Aluminum
  • Trim: Brass
  • Elastomer: Nitrile on Dacron

• Nominal Voltage: 24 Vdc
• Maximum Continuous Operating Voltage: 36 Vdc
• Protects two loops or 4-wires
• Nominal Surge Current (able to withstand repeated applications):

  • 8/20 μs, Line-to-Ground: >1200 Amps
  • 10/1000 μs, Line-to-Ground: >130 Amps
• 111 mm H, 12.6 mm W, 99 mm D
• Mounts to Grounded DIN Rail
• Compression lugs accept #26 to #14 AWG conductors

TESCOM™ Anderson Greenwood Instrumentation | Three Valve Manifold | Series M4T Instrument Manifold M4TVIS-4 | Body Material: 316SS | Seat: Integral (Same as Body) | Connections: 1/2" FNPT Inlet x Inst Flange Oulet | Packing: PTFE | Orifice: 3/16" (4.74mm) Orifice | Max Pressure: 6000 psig (414 barg) | Max Temperature: 500°F (260°C)

• Set Point Range: 2-120 psig, 0.14-8 bar,14-800 kPa
• Proof Pressure (Maximum): 300 psig, 20 bar, 2000 kPa
• Supply Pressure (Maximum): 250 psig, 14 bar, 1400 kPa
• Port Size: 1/4"
• Port Thread: NPT
• Actuator: Knob
• Material of Construction:

  • Body & Housing: Epoxy Coated Aluminum
  • Trim: Zinc Plated Steel, Stainless Steel, Nickel Plated Steel,
  • Elastomers: Nitrile

ACC*LK9FUW 3-10" KGC ES BD MN-HD actuators

• FOXBORO IDP10S-T22C21FP-M2L1 ADVANCED DIFFERENTIAL PRESSURE TRANSMITTER
• ELECTRONICS: DIGITAL HART & 4 TO 20 mA
• STRUCTURE : 316SS PROCESS COVER AND SENSOR, SILICONE FILL FLUID
• SPAN LIMITS: 2.5 AND 1000 inH20
• CONNECTION : 1/2 NPT
• CONDUIT : 1/2 NPT CONDUIT CONNECTION, BOTH SIDES
• HOUSING : ALUMINUM
• ELECTRICAL : FM MULTIPLE CERTIFICATIONS

  • FA- I,II,III DIV. 1 INTRINSICALLY SAFE
  • FN- I,II,III DIV. 2 NON-INCENDIVE
  • FD- I,II,III DIV 1 EXPLOSION PROOF AND DUST IGNITION PROOF
• OPTIONS : DIGITAL INDICATOR, STAINLESS STEEL MOUNTING BRACKET

• ELECTRONICS: HART
• STRUCTURE :

• • BIPLANER DESIGN
  • 316 SS HI-SIDE COVER,
  • 316L SS SENSOR,
  • SILICONE FILL FLUID
• SPAN LIMITS: BIPLANER SPAN LIMIT: 2.49 AND 1000" H20
• HOUSING : ALUMINUM
• ELECTRICAL : FD- I,II,III DIV 1 EXPLOSION PROOF AND DUST IGNITION PROOF

• ELECTRONICS: HART
• STRUCTURE :

  • 316LSS PROCESS CONNECTION AND DIAPHRAGM
  • SILICONE FILL FLUID
  • 1/2 NPT EXTERNAL
  • 1/4 NPT INTERNAL THREAD CONN
  • FLAMEPROOF CERTIFICATION
• SPAN LIMITS: 5 AND 2000 PSI
• CONDUIT : 1/2 NPT CONDUIT CONNECTION
• HOUSING : ALUMINUM
• ELECTRICAL : FM MULTIPLE CERTIFICATIONS

  • FA- I,II,III DIV.1 INTRINSICALLY SAFE
  • FN- I,II,III DIV. 2 NON-INCENDIVE
  • FD- I,II,III DIV 1 EXPLOSION PROOF AND DUST IGNITION PROOF
• OPTIONS : 316SS MOUNTING BRACKET AND BOLTS, DIGITAL INDICATOR

• ELECTRONICS: HART
• STRUCTURE :

  • 316LSS PROCESS CONNECTION AND DIAPHRAGM
  • SILICONE FILL FLUID
  • 1/2 NPT EXTERNAL
  • 1/4 NPT INTERNAL THREAD CONN
  • FLAMEPROOF CERTIFICATION
• SPAN LIMITS: 0.5 AND 200 PSI
• CONDUIT : 1/2 NPT CONDUIT CONNECTION
• HOUSING : ALUMINUM
• ELECTRICAL : FM MULTIPLE CERTIFICATIONS

  • FA- I,II,III DIV.1 INTRINSICALLY SAFE
  • FN- I,II,III DIV. 2 NON-INCENDIVE
  • FD- I,II,III DIV 1 EXPLOSION PROOF AND DUST IGNITION PROOF
• OPTIONS : 316SS MOUNTING BRACKET AND BOLTS, DIGITAL INDICATOR

• FOXBORO IDP05S-T22C21FP-M2L1 VALUE DIFFERENTIAL PRESSURE TRANSMITTER
• ELECTRONICS: DIGITAL HART & 4 TO 20 mA
• STRUCTURE : 316SS PROCESS COVER AND SENSOR, SILICONE FILL FLUID
• SPAN LIMITS: 2.5 AND 1000 INH2O
• CONNECTION : 1/2 NPT
• CONDUIT : 1/2 NPT CONDUIT CONNECTION, BOTH SIDES
• HOUSING : ALUMINUM
• ELECTRICAL : FM MULTIPLE CERTIFICATIONS

  • FA- I,II,III DIV.1 INTRINSICALLY SAFE
  • FN- I,II,III DIV. 2 NON-INCENDIVE
  • FD- I,II,III DIV 1 EXPLOSION PROOF AND DUST IGNITION PROOF
• OPTIONS : DIGITAL INDICATOR, STAINLESS STEEL MOUNTING BRACKET

• FA- I,II,III DIV.1 INTRINSICALLY SAFE
• FM- I,II,III DIV. 2 NON-INCENDIVE
• FD- I,II,III DIV 1 EXPLOSION PROOF AND DUST IGNITION PROOF
