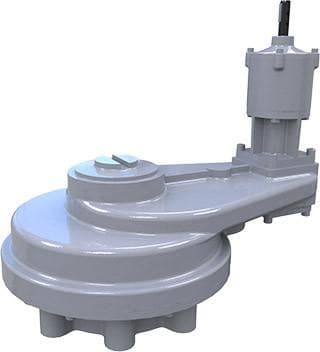

Rotork HOS/MPR - Multi-Turn Hand Operated Spur Gearbox

Brand: Rotork PLC

The HOS/MPR gear operators are manufactured from high quality materials and life tested ensuring that maximum performance, quality and reliability are consistently maintained.

Operating temperature normally ranges from -40º to 120º C, although other temperature ranges are available on request.
Features
  • Torque range up to 15,917 Nm (11,740 lbf.ft)
  • Thrust range up to 1,557 kN (350,000 lbf)
  • 13 sizes
  • Ratios from 2.04:1 to 151.9:1
  • Carefully chosen ratios to meet manual rim effort requirements
  • Protected steel input shaft
  • Totally enclosed gearing
  • Cast iron gearcase
  • Ductile iron baseplate
  • Grease filled for life
  • Maintenance free
  • Sealed to IP67
  • Protected steel fasteners
  • Primed finish
  • Options
    • High Temperature to +150° C or +200° C
    • Low Temperature to -60° C
    • IP68
    • Stainless Steel input shaft
    • Coating for aggressive environments
    • Position indicators
    • Two speed input reducers
    • Fixed & Flexible Extensions
    • Firesafe to ISO 10497
    • Padlock
    • Gloss paint finish

Specifications

Environmental Protection

  • IP67
  • IP68 Optional

Operating Temperature

  • -40° to 250° F (-40° to 120° C)

Material of Construction

  • Basepalte & Gear: SG Iron
  • Fastener, Gear & Output Sleeve B: Steel
  • Output Sleeve A: Aluminum Bronze
  • Planet Carrier, Planetary Gearcase: Ductile Iron
  • Planet Gear: Carbon Steel

Shaft Material

  • Input Shaft: Protected Steel

Output Torque

  • 375 to 34,002 lbsft

Thrust

  • Maximum 12,000 to 978,000 lbs

Enclosure, Body Material

  • Cast Iron
  • SG Iron

Seal Material

  • Nitrile Rubber

Product Finish

  • PE3 Grey Primer
