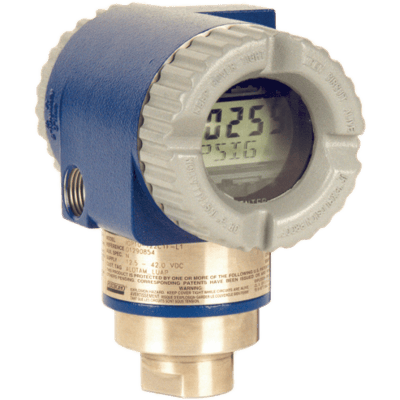

The Foxboro® brand I/A Series® Model IGP10 is a two-wire transmitter that provides precise, reliable measurement of high gauge pressures, and provides a digital or Analog output signal for local or remote configuration, monitoring, and control.
Features
Gauge pressure ranges to 52, 105, or 210 MPa (7500, 15,000, or 30,000 psi)
Digital output versions with either FoxCom™, HART®, or FOUNDATION™ Fieldbus communication protocol
Analog output version can be either 4 to 20 mA, or 1 to 5 V dc for low power installations
Fieldbus version FISCO/FNICO compliant
SIL2-Certified transmitter offered as an option for HART versions
Silicon strain gauge sensors successfully field-proven in many thousands of installations
Aluminum housing has durable, corrosion resistant epoxy finish; 316 ss housing also available; both meet NEMA 4X and IP66 ratings
Stainless steel or Inconel wetted sensor for 105 MPa (15,000 psi) transmitters, or high strength 13-8 Molybdenum stainless steel for 210 MPa (30,000 psi) transmitters
Welded, stainless steel pressure capsule assembly with bonded strain gauge sensor provides an airtight and watertight seal and intrinsic overpressure protection
Multi-marking is available for HART electronic versions only for FM, CSA, and ATEX intrinsically safe installations. The user determines and permanently marks on the data plate the certification to be applied.
