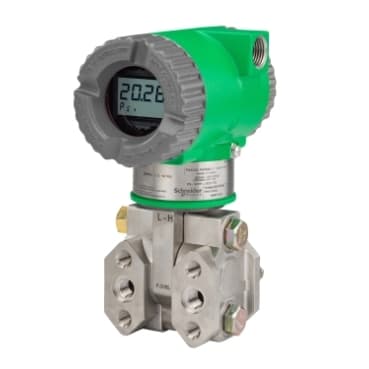

IDP10 Series Pressure Transmitter

Brand: Foxboro-Eckardt

IDP10S pressure transmitters cover most of your application needs with a single range. These transmitters offer embedded FoxCal™ technology and multiple points of calibration, which allow you to benefit from wide rangeability and one of the best reference accuracy turndowns on the market. These transmitters have an accuracy of up to ±0.05% of reading, and HART transmitters are SIL 2 certified.
Features
  • Remote communication capabilities
  • SIL 2 as standard (HART)
  • FoxCal™ technology
  • Stability: < ±0.03% of URL/yr for 10 years
  • Robust Design: 5-year warranty (optional 17-year warranty)
  • In-service time tracking
  • Direct Connect AP/GP response time: < 100 ms2
  • DP and Biplanar AP/GP response time: < 125 ms2
  • High Turndown Capability3 (up to 400:1)

Models matching criteria: 5
  • FOXBORO IDP10S-T22C21FP-M2L1 ADVANCED DIFFERENTIAL PRESSURE TRANSMITTER
  • ELECTRONICS: DIGITAL HART & 4 TO 20 mA
  • STRUCTURE : 316SS PROCESS COVER AND SENSOR, SILICONE FILL FLUID
  • SPAN LIMITS: 2.5 AND 1000 inH20
  • CONNECTION : 1/2 NPT
  • CONDUIT : 1/2 NPT CONDUIT CONNECTION, BOTH SIDES
  • HOUSING : ALUMINUM
  • ELECTRICAL : FM MULTIPLE CERTIFICATIONS
    • FA- I,II,III DIV. 1 INTRINSICALLY SAFE
    • FN- I,II,III DIV. 2 NON-INCENDIVE
    • FD- I,II,III DIV 1 EXPLOSION PROOF AND DUST IGNITION PROOF
  • OPTIONS : DIGITAL INDICATOR, STAINLESS STEEL MOUNTING BRACKET
12 In Stock
FOXBORO IDP10S-T22B21FP-M2L1 ADVANCED DIFFERENTIAL PRESSURE TRANSMITTER
ELECTRONICS: DIGITAL HART & 4 TO 20 mA
STRUCTURE : 316SS PROCESS COVER AND SENSOR, SILICONE FILL FLUID
SPAN LIMITS: 0.5 AND 200 INH2O
CONNECTION : 1/2 NPT
CONDUIT : 1/2 NPT CONDUIT CONNECTION, BOTH SIDES
HOUSING : ALUMINUM
ELECTRICAL : FP- INCLUDES CERTIFICATIONS LISTED BELOW
  • FA- I,II,III DIV.1 INTRINSICALLY SAFE
  • FM- I,II,III DIV. 2 NON-INCENDIVE
  • FD- I,II,III DIV 1 EXPLOSION PROOF AND DUST IGNITION PROOF
OPTIONS : DIGITAL INDICATOR, STAINLESS STEEL MOUNTING BRACKET
5 In Stock
FOXBORO IDP10S-T22B21FP-M2L1V ADVANCED DIFFERENTIAL PRESSURE TRANSMITTER
ELECTRONICS: DIGITAL HART & 4 TO 20 mA
STRUCTURE : 316SS PROCESS COVER AND SENSOR, SILICONE FILL FLUID
SPAN LIMITS: 0.5 and 200 inH2O
CONNECTION : 1/2 NPT
CONDUIT : 1/2 NPT CONDUIT CONNECTION, BOTH SIDES
HOUSING : ALUMINUM
ELECTRICAL : FM MULTIPLE CERTIFICATIONS
  • FA- I,II,III DIV.1 INTRINSICALLY SAFE
  • FN- I,II,III DIV. 2 NON-INCENDIVE
  • FD- I,II,III DIV 1 EXPLOSION PROOF AND DUST IGNITION PROOF
OPTIONS : DIGITAL INDICATOR, STAINLESS STEEL MOUNTING BRACKET SIDE MOUNTED VENT SCREWS
1 In Stock
  • FOXBORO IDP10S-T22C21FP-M2L1V ADVANCED DIFFERENTIAL PRESSURE TRANSMITTER
  • ELECTRONICS: DIGITAL HART & 4 TO 20 mA
  • STRUCTURE : 316SS PROCESS COVER AND SENSOR, SILICONE FILL FLUID
  • SPAN LIMITS: 2.5 AND 1000 inH20
  • CONNECTION : 1/2 NPT
  • CONDUIT : 1/2 NPT CONDUIT CONNECTION, BOTH SIDES
  • HOUSING : ALUMINUM
  • ELECTRICAL : FM MULTIPLE CERTIFICATIONS
    • FA- I,II,III DIV.1 INTRINSICALLY SAFE
    • FN- I,II,III DIV. 2 NON-INCENDIVE
    • FD- I,II,III DIV 1 EXPLOSION PROOF AND DUST IGNITION PROOF
  • OPTIONS :
    • DIGITAL INDICATOR,
    • STAINLESS STEEL MOUNTING BRACKET
    • SIDE MOUNTED VENT SCREWS
Out of Stock
  • FOXBORO IDP10S-T22D21FP-M2L1 ADVANCED DIFFERENTIAL PRESSURE TRANSMITTER
  • ELECTRONICS: DIGITAL HART & 4 TO 20 mA
  • STRUCTURE : 316SS PROCESS COVER AND SENSOR, SILICONE FILL FLUID
  • SPAN LIMITS: 3.75 AND 300 PSI
  • CONNECTION : 1/2 NPT
  • CONDUIT : 1/2 NPT CONDUIT CONNECTION, BOTH SIDES
  • HOUSING : ALUMINUM
  • ELECTRICAL : FM MULTIPLE CERTIFICATIONS
    • FA- I,II,III DIV.1 INTRINSICALLY SAFE
    • FN- I,II,III DIV. 2 NON-INCENDIVE
    • FD- I,II,III DIV 1 EXPLOSION PROOF AND DUST IGNITION PROOF
  • OPTIONS : DIGITAL INDICATOR, STAINLESS STEEL MOUNTING BRACKET
Out of Stock
