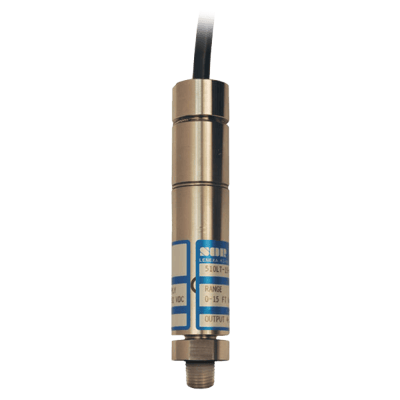

510IM Immersible Fixed Range Pressure Transmitter
Brand: SOR Inc
When flooding is a threat, or when you need a pressure transmitter in non-corrosive water, the SOR 510IM pressure transmitter is the answer.
This compact, loop-powered pressure transmitter accurately and reliably measures pressure on equipment that is either continuously or frequently immersed in fluids.
The stainless steel pressure port and housing, Viton o-ring seal, and ceramic sensor make the wetted parts chemically compatible with most gases and liquids.
Features- Suitable for continuous liquid immersion
- Ranges from 5 to 2,000 psi
- Compact, 316SS housing
Specifications
Brand
Accuracy
- 0.25 % of Sensor Range (Including Linearity, Hysteresis & Repeatability)
Pressure Range
- 5 to 2,000 psi, 0.34 to 140 bar
Stability
- Long Term: ± 0.1% of Sensor Range Per Year
Supply Voltage
- 10-32 Vdc (IS Option 28 Vdc, Max.)
Operating Temperature
- -20° to 80° C (-4° to 176° F)
Storage Temperature
- -40° to 80° C (-40° to 176° F)
Compensated Temperature
- 0° to 80° C (32° to 176° F)
Circuit Protection
- Reverse Polarity
- Protected
Zero Offset/Range Offset
- ± 0.5 % of Range at 25° C (77° F)
Temperature Effect
- Span: ≤ 1 % of Range Per 38° C (100° F), Calibrated at 25° C (77° F)
Electrical Connection
- 20 AWG Shielded Cable
Response Time
- < 25 ms
Output
- 4-20 mA, Loop-Powered
Loop Resistance
- 700 ohms, Max. @ 24 Vdc
Process Connection
- 1/4" NPT Male
Cable Length
- Maximum 5,000 ft (1,524 m)
Material of Construction
- Housing: 316 Stainless Steel
- Cable Gland: Butyl Rubber
- Diaphragm: Ceramic (Al2O3)
- Seal: Viton
- Cable Jacket: HDPE
Approvals & Certifications
- ATEX, CE
Environmental Protection
- IP68
