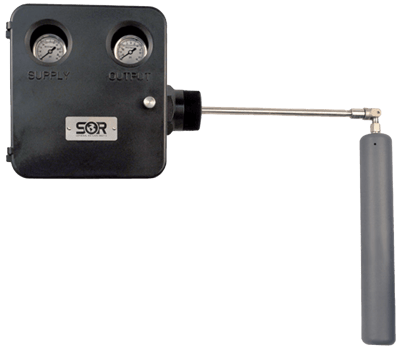

1600 Series Liquid Level Controller
Brand: SOR Inc
1600 series liquid level controllers are manufactured to be ideal for oilfield scrubber and separator applications.
Their rugged and versatile design makes them the preferred choice of production operators for reliable service in a wide variety of applications.
1600 series controllers are available with pneumatic snap or throttling pilot; direct or reverse action; with a variety of displacer sizes, materials and vessel connections.
Features- Weather proof case utilizes a gasket between its cover and case to seal out the effects of outside weathering
- Well suited for liquid-liquid interface detection
- Controller case is easily field reversible
- Standard displacer materials are PVC and 316 stainless steel
- Available with wetted materials that meet NACE MR0175 specifications for sour service
- CRN certification available
- LeakTite no bleed pilot for limiting fugitive emissions to meet EPA regulations
Specifications
Brand
Approvals & Certifications
- CRN
- EPA
Bearing Material
- Bearing Block: 316 Stainless Steel
- Stainless Steel
Cover Material
- Die Cast Aluminum
Diaphragm Material
- Pilot Diaphragm: Neoprene
Electrical Connectors
- Supply & Output Connection (Pneumatic Pilot): 1/4” NPT Female
Enclosure, Body Material
- Carbon Steel
Flange Size - 2” (DN 50)
- 2” (DN 50) - 150#
- 2” (DN 50) - 300#
- 2” (DN 50) - 600#
- 2” (DN 50) - 900#
Flange Size - 3” (DN 80)
- 3” (DN 80) - 150#
- 3” (DN 80) - 300#
- 3” (DN 80) - 600#
- 3” (DN 80) - 900#
Flange Size - 4” (DN 100)
- 4” (DN 100) - 150#
- 4” (DN 100) - 300#
- 4” (DN 100) - 600#
- 4” (DN 100) - 900#
Flange Size - 6” (DN 150)
- 6” (DN 150) - 150#
- 6” (DN 150) - 300#
- 6” (DN 150) - 600#
- 6” (DN 150) - 900#
Flange Type
- Raised Face (RF)
- RTJ - Ring Typical Joint
Fluid Specific Gravity
- Interface Min. Differential: 0.04
- Snap & No Bleed Pilot: 0.35
- Throttling Pilot: 0.60
Gasket Material
- Pilot Gasket: Neoprene
Length
- Arm Length: 10 to 20” (254 to 508 mm)
Materials of Construction
- Displacer Material, Displacer Arm, Vertical Hanger (Swivel): 316 Stainless Steel
- Displacer Material: PVC
- Gauge: 316 Stainless Steel or Vibration Resistant 316 Stainless Steel
- Gauge: Brass or Vibration Resistant Brass
- Pilot: Aluminum with Stainless Steel Internals
Mounting
- Left Hand Side Mount
- Right Hand Side Mount
NACE & NIST
- NACE MR-0175
NPT Connection
- 2” NPT Male
Operating Temperature
- -40° to 204° C (-40° to 400° F)
Pilot Pressure
- Pneumatic Pilot, Output Throttle (Modulating): psi: 3 to 30 (kPa: 20.6 to 206, bar: 0.2 to 2.06)
- Pneumatic Pilot, Snap (ON/OFF) - psi: 0 to 30 (kPa: 0 to 206, bar: 2.06)
Pressure Rating
- Flanged - psi: 2,220 (kPa: 15,306, bar: 153)
- Threaded: psi: 6,000 (kPa: 41,340, bar: 414)
Seat / Seal Material
- Seal: Buna-N
- Seal: Viton
Shaft Material
- 316 Stainless Steel
Supply Pressure
- psi: 20 to 30 (kPa: 138 to 206, bar: 1.38 to 2.06)
Welded Connection
- 2” Butt Weld End
- Oil Field Scrubber
- Separator
