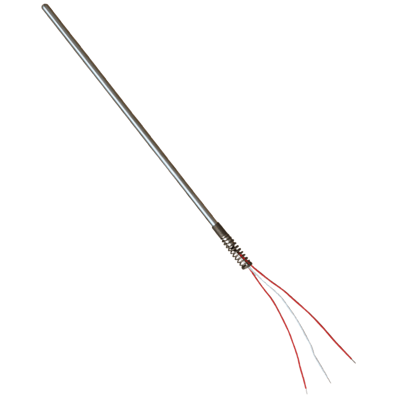

Industrial Style RTD with Spring
Brand: SOR IncIndustrial sensors are intended as replacement elements for use in temperature assemblies that consist of a connection head, extension such as a nipple-union-nipple and thermowell.
They can be provided in a number of diameters and temperature ranges to suit any application.
Features- Sensor is provided with a spring and 6 inches (15.2 cm) of leads for easy installation and retrofit for any supplier’s sensor
- Standard Temperature ranges from -200°F (-129°C) to 900°F (482°C)
- Additional Ranges available upon request
- Accuracy options available for tighter process control
- Elements available are thin film or wire wound
Specifications
Brand
Accuracy
- 1700: T= ± 0.1 (0.3 + 0.005 L T L)
- Class A: T= ± (0.15 + 0.002 L T L)
- Class B: T= ± (0.3 + 0.005 L T L)
Cable Type
- Mineral Insulated (MI) Cable - PM Typical
Diameter
- Outer Diameter (OD): 1/8 to 3/8” (3.2 to 9.5 mm)
Element
- 100 ohms Platinum at 0° C (32° F), 0.00385 DIN Curve at 0° C (32° F)
- Dual Elements
- Single Element
Lead Insulation
- Fiberglass Leads - PH Typical
- Nickel Clad Copper Lead Wire Insulated with Teflon - PO Typical
Materials of Construction
- Element Material: Platinum Defined by DIN EN 60751 (ITS 90)
- Sheath Material: 316 Stainless Steel
NACE & NIST
- NIST - 1700 Typical
RTD Type
- Ni120 at 0° C (32° F), Edison #7 (DIN 43760) - RN Typical
Seal Type
- Epoxy Seal At, Max.
Sensor, Probe Connection
- 2-Wire
- 3-Wire
- 4-Wire
Sensor, Probe Type
- RTD
Temperature Range
- 1700: 0° to 150° C (32° to 302° F)
- Class B: -50° to 300° C (-58° to 572° F)
- Class B: -70° to 500° C (-94° to 932° F)
Wiring
- 22 Gauge
