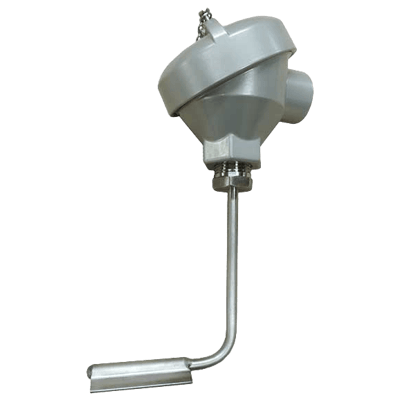

Type 1500/1500R Electric Trace Sensor

Brand: SOR Inc

The SOR Type 1500 Electric Trace Sensor accurately measures the surface temperature of any pipe or tank greater than 3 in (7.6 cm) in diameter.
Features
  • Standard X and Y dimensions reduce the heat sink effect and greatly improves the accuracy
  • Used for electric heat tracing control for freeze protection and process control, especially where changes in temperature can cause process material to stratify
  • The surface temperature design of the Type 1500R allows easy removal of the sensor
  • The sensor can be removed without disturbing or removing insulation on the vessel
  • Reduces replacement downtime

Specifications

Brand

Enclosure, Body Material

  • Head Typical (Sanitary): Polypropylene
  • Head Typical: Aluminum (Cast, Flip Top)
  • Head Typical: Cast Stainless Steel
  • Head Typical: Iron (Cast, Flip Top)

Environmental Protection

  • Explosion-proof
  • IP66
  • IP68
  • NEMA 4X

Junction

  • Dual Grounded
  • Dual Ungrounded
  • Grounded
  • Ungrounded

Pipe Size

  • 3” to 6”

RTD Type

  • Pt100

Sensor, Probe Connection

  • 3-Wire
  • 4-Wire

Sensor, Probe Type

  • E Thermocouple - Chromel-Constantan
  • J Thermocouple (Iron Constantan)
  • K Thermocouple (Chromel Alumel)
  • N Thermocouple (Nicrosil Nisil)
  • RTD
  • T Thermocouple (Copper Constantan)

Temperature Range

  • 0° to 482° C (32° to 900° F)
