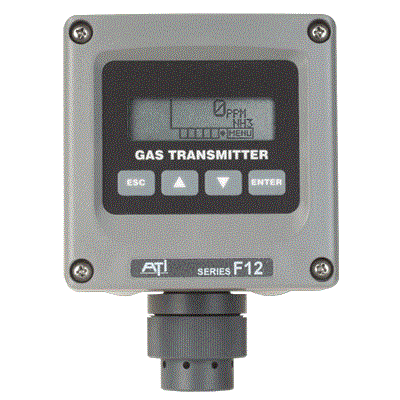

F12D Toxic Gas Detector
Brand: Analytical Technology Inc/F12-Toxic-Gas-Detector/488546_F12_Toxic_Gas_Detectors_2.gif)
ATI's F12iS Toxic Gas Detector is designed to measure toxic gases and oxygen in hazardous locations requiring an Intrinsically Safe (IS) device.
The F12/D, a non-IS version, is also available for non-hazardous locations.
For many toxic gases, ATI offers a unique sensor response testing system unmatched by any competitive gas transmitter.
Even outdoors in high wind conditions, the Auto-Test system provides reliable response checks to ensure system integrity.
Sensor response is verified with an actual gas sample that is generated on demand.
Generators store run time information accessible to operators, and are automatically tested for compatibility with the installed electrochemical sensors.
F12 gas detectors provide useful features that simplify installation, operation, and maintenance.
The 4-button keypad is used to configure the menu-driven setup pages.
The display also provides alarm indication and complete menus for setting up operating parameters.
Each version utilizes a digital communications protocol. The IS version of the gas transmitter is available with HART™ communications.
The HART™ protocol supports the HART™ Universal and Common Practice Commands at 1200 baud using the Bell 202 FSK modem standard.
The non-IS version of the transmitter is available with MODBUS™ communications.
The MODBUS™ protocol supports 9600 baud access to concentration and status information, and supports alarm setup and many other functions on either RS485 or RS232 (software selectable).
Features- Interchangeable sensors accommodating 60 different gas modules
- Sensor verification with Auto-Test function
- Test history is stored in sensor memory
- LCD Graphic Display
- Heated sensor option allows operation in high humidity
- Remote sensor junction box with digital output allows sensor location up to 500 ft. from the F12D
- Internal data logger stores gas values at user defined intervals from 1 to 60 minutes
- Calibration history and calibration adjustments of zero and span are stored in sensor memory
- F12iS variant is available with optional Hart® output
- CE and RoHS Compliant
Specifications
Sensor Type
- Electrochemical Cell
Range
- User Adjustable within Limits of Selected
Response Time
- Sensor Dependent
Accuracy
- Generally ± 5-10 % of Value, Limited by Available Calibration Gas Accuracy
Repeatability
- ± 1 % (Electronic)
Linearity
- ± 0.5 % (Electronic)
Zero Drift
- Less Than 2 % Full Scale Per Month, Non-Cumulative
Span Drift
- Dependent on Sensor Environment but Generally Less Than 3 % Per Month
Analog Output
- 4-20 mA, 600 ohms Max. at 24 Vdc
Serial Interface
- (Optional) HART Digital Signaling Over the 4-20 mA Current Loop
- (Optional) Modbus RTU Over RS-232/485
Power Requirements
- DC/RS-485: 24-30 Vdc, 100 mA Max.
- 115 Vac (± 15 %), 50/60 Hz, 6 VA Max.
- 230 Vac (± 15 %), 50/60 Hz, 6 VA Max.
- 12-30 Vdc (with relays): 250 mA Max.
Enclosure
- IP 65, Polycarbonate with Stainless Steel Hardware. Weatherproof and Corrosion Resistant.
CE Mark
- 2014/30/EU - Electromagnetic Compatibility
- 2014/35/EU - Low Voltage Directive
Mounting
- (Standard) Wall or Pipe Mount Bracket. U-Bolts Suitable for 1.5” or 2” I.D.
- (Optional) Panel Mount Kit Available.
Auto-Test Option
- Dependent on Sensor Gas Type and Full Scale Range
Display
- 96x32 Dot-matrix Graphic LCD, Backlit, Transflective
Controls
- Four, Dome-Type Push Buttons
- Remote Alarm Rest Input (W/ Optional Alarm Relays Only)
Temperature
- -30° C to +60° C (Min. temp. for O₂ Sensor is -20° C)
Environment
- 10 to 95 % RH (Non-Condensing)
Weight
- 1.5 lb (0.68 kg)
- Wastewater Treatment Plants
- Chemical Plants
- Pharmaceutical and Medical
- Semiconductor Fabrication
- Food Processing
- Mineral Processing
- Gas Processing
- Petroleum Refining
