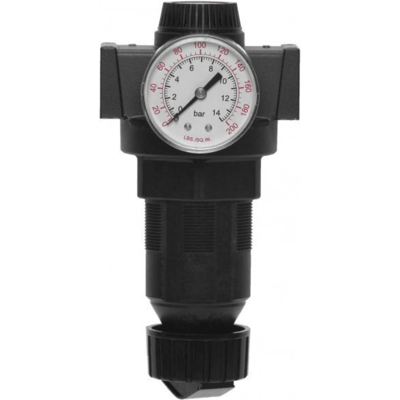

Burling Valve General Purpose Pressure Regulator, BVR Series
Images are representations only.

BVR Series General-Purpose Pressure Regulator

Brand: Burling Valve
Request Information
Favorite

The general-purpose BVR series pressure reducing regulators offer consistent and reliable pressure control. The BVR is adjusted manually by turning a knob and increasing or decreasing spring tension on a diaphragm (or piston) to achieve the desired output pressure. The BVR series is pressure reducing from a maximum inlet pressure of psi: 300 (kPa: 2,100, bar: 21) down to various pressure ranges, depending on which model and flow is required.

Our general-purpose pressure regulators are made from zinc and/or aluminum with a brass valve and nylon valve cap.
Features
  • Inline mounting
  • Piston-type design (3/4” to 1-1/2”)
  • Diaphragm-type design (1/4” to 1/2”)
  • Self-relieving; non-relieving optional
  • Pressure gauge
  • Pressure adjustment locking key
  • NPTF port threads

Specifications

Brand

Enclosure, Body Material

  • 1/4” to 1/2”: Zinc
  • 3/4” to 1-1/2”: Aluminum

NPT Connection

  • 1” NPT Female
  • 1/2” NPT Female
  • 1/4” NPT Female
  • 1-1/2” NPT Female
  • 1-1/4” NPT Female
  • 3/4” NPT Female
  • 3/8” NPT Female

Pressure Range

  • bar: 0 to 12
  • kPa: 0 to 1,200
  • psi: 0 to 175

Relief

  • Non-Relieving
  • Self-Relieving

Seat / Seal Material

  • Seal: Nitrile

Supply Pressure - Maximum

  • bar: 21
  • kPa: 2,100
  • psig: 300
