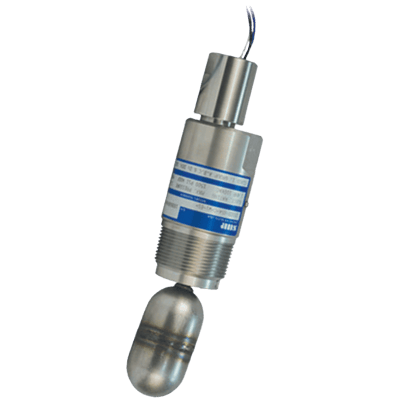

1510 Side Mounted Level Switch
Brand: SOR Inc1510 is a horizontally mounted, float operated level switch suitable for plant and OEM applications where open or closed contacts are required to signal presence or absence of liquid at a discrete level.
The float extension arm moves a magnet which actuates (deactuates) a hermetically sealed reed switch. Actuation (deactuation) can be reversed by rotating the unit 180 degrees.
Specifications
Brand
Approvals & Certifications
- Calibration
- Compliance/Conformance
- Dielectric Test
- Inspection Report
- Insulation Resistance
- Mill Test Report
- Quality Test Report
- SIL 1 & SIL 2 Certification for IEC 61508 (SIL)
Approvals & Certifications
- ATEX: Ex d IIC Ga/Gb T4 (-40° < Ta < 90° C), T5 (-40° < Ta < 75° C), Ex ia IIC T3 (-40° < Ta < 125° C)
- CRN
- CSA: Class I, Groups A, B, C, D, Divisions 1 & 2, for Relay Option, Class I, Groups C, D, Divisions 1 & 2, Single Seal Ambient & Process Temperatures -40° to 125° C
- GOST-R
- IEC Ex d IIC Ga/Gb T4 (-40° < Ta < 90° C), T5 (-40° < Ta < 75° C), Ex ia IIC T3 (-40° < Ta < 125° C)
- INMETRO Ex ia IIC T3 (-40° C < Ta < 125° C)
- RTN
Cable Length
- 20 feet (6 metres)
Conduit Connection
- 3/4” NPT Female
Electrical - Free Leads
- Switch Typical: 18” 20 AWG Wire Leads
Electrical Connectors
- 1/2” NPT Female
Electrical Rating
- Contact Rating for DPDT Relay (24 Vdc/120 Vac): 10 A at 115 Vac at Class I, Group C, D, Divisions 1 & 2
- SPST/SPDT: 0.9 A at 110 Vac, Max.
- SPST/SPDT: 3 A at 28 Vdc, Max.
Enclosure, Body Material
- 303 Stainless Steel
- 316 Stainless Steel
Flange Size - 2-1/2” (DN 65)
- 2-1/2” (DN 65) - 150#
- 2-1/2” (DN 65) - 300#
- 2-1/2” (DN 65) - 600#
Flange Size - 3” (DN 80)
- 3” (DN 80) - 150#
- 3” (DN 80) - 300#
- 3” (DN 80) - 600#
Flange Size - 4” (DN 100)
- 4” (DN 100) - 150#
- 4” (DN 100) - 300#
Flange Size - 6” (DN 150)
- 6” (DN 150) - 150#
- 6” (DN 150) - 300#
Fluid Specific Gravity
- 0.45
Materials of Construction
- Float Material: 316 Stainless Steel
- Float Material: Monel
- Float Material: Polypropylene
Media
- Natural Gas
Mounting
- Side Mounting
Mounting Position
- Horizontal
Name Plate, Tag Material
- Stainless Steel
NPT Connection
- 1-1/2” NPT Male
- 2” NPT Male
O-Ring Material
- Viton GLT
Power
- 24 Vdc - DPDT Relay
- Low Power: 25 W, Max.
Pressure Range
- Maximum
Process Temperature
- -40° to 204° C (-40° to 400° F)
Rotation
- 180°
Sensor, Probe Style
- Float
Switch Type
- DPDT Relay
- Hermetically Sealed Reed Switch
- SPDT
- SPST
- Plant & OEM Applications
