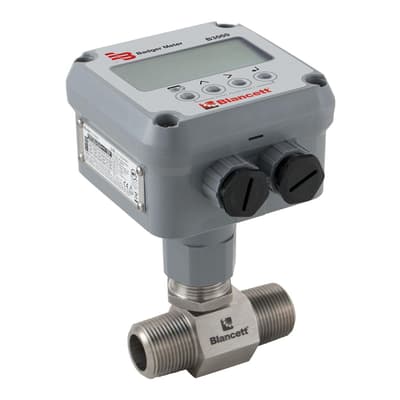

B1500 Turbine Flow Meter
Brand: BlancettBlancett B1500 turbine flow meters have exceptional mechanical linearity, resulting in minimizing, or negating, temperature induced viscosity influence.
Meters come with national pipe thread (NPT) or flange process fittings, sizes up to two inches and can be ordered with a Blancett B3000 flow monitor to accommodate the requirements of most applications and flow ranges.
Features- Expanded mechanical linearity.
- Helical rotor design.
- High-performance ceramic ball bearings.
- 6-bladed rotor supports.
- Facility with NIST traceable standards.
Specifications
Brand
Accuracy
- (With K-factor Only) ± 0.5 %
- (With B3000 Linearization) ± 0.25 %
Flow Range
- 0.25 to 250 gpm
Industries
- Process or Industrial
- Chemical, Refining & Petrochemical
Pressure Range
- Up to 5922 psi
Size
- 1/4” to 2”
Temperature Range
- -150° to 300° F
