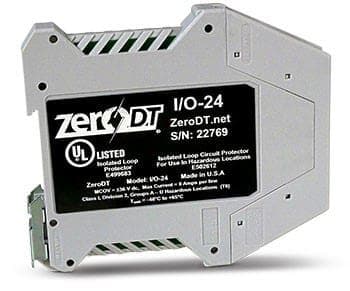

ZeroDT I/O-24 DIN Rail Mount Surge Protector

Part Number: I/O-24 Brand: Zero Downtime
Price
$199.00 USD
Stock
21 In Stock
Request Information
[color=#333333][size=4][font="Open Sans", sans-serif]The ZeroDT DIN rail mount industrial surge protector works to provide protection of the electronics in your cabinet/panel or in tandem with the field surge protectors to provide end-to-end protection. The I/O-24 is designed to protect two loops or 4-wires and only takes up ½” of valuable DIN rail space. Ensure the safety of your electronic equipment and know that your devices and electronics are in good hands.[/font][/size][/color]

The ZeroDT DIN rail mount industrial surge protector works to provide protection of the electronics in your cabinet/panel or in tandem with the field surge protectors to provide end-to-end protection. The I/O-24 is designed to protect two loops or 4-wires and only takes up ½” of valuable DIN rail space. Ensure the safety of your electronic equipment and know that your devices and electronics are in good hands.
The I/O-24 is the perfect addition to any industrial facility that operates a number of electronic devices. Its specifications include:
  • Nominal Voltage: 24 Vdc
  • Maximum Continuous Operating Voltage: 36 Vdc
  • Protects two loops or 4-wires
  • Nominal Surge Current (able to withstand repeated applications):

    • 8/20 μs, Line-to-Ground: >1200 Amps
    • 10/1000 μs, Line-to-Ground: >130 Amps
  • 111 mm H, 12.6 mm W, 99 mm D
  • Mounts to Grounded DIN Rail
  • Compression lugs accept #26 to #14 AWG conductors
