SOR Smart Differential Pressure Transmitter, 815DT
Images are representations only.

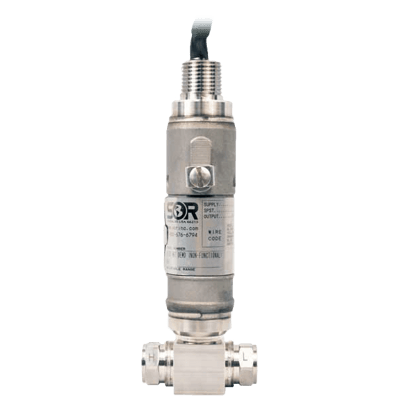

815DT Smart Differential Pressure Transmitter

Brand: SOR Inc

The 815DT smart differential pressure transmitter is a rugged, compact, lightweight, loop-powered instrument that is ideally suited for hazardous locations and hostile environments where space is limited.

The 815DT offers many industry standard outputs to meet applications where low-cost, discrete, and continuous monitoring is required or preferred.

This versatile instrument may be used to reliably measure differential pressure, level, or flow.

A software CD is included in the kit and the software (Version 4.0.0.0).

The 815DT is easily configured using HART®7 Communication Protocol and Modbus RTU Serial Communications and the zero and span set points can be easily set with a magnet.

Features
  • HART®7 communication protocol with 4-20 mA output
  • 1-5 VDC (low-power) mode of operation output
  • Modbus RTU (RS-485) serial communications
  • Configurable normally-open solid state switch output (SPST)
  • ±0.10% (URL) accuracy (continuous output)
  • Local Indicating Display option available
  • Zero balance & URL: ±0.25% URL (Each)
  • 316 stainless steel, explosion-proof housing
  • Compact: 2.2 in./55.9 mm face-to-face dimension
  • Hermetically sealed leads
  • Pressure ranges: 0-138 in H2O (0-5 psid) to 0-500 psid
  • Turndown: 5 to 1
  • Zero and span magnetic targets located on housing
  • EMC (EMI/RFI) protection
  • NEMA 4X, IP66 housing
  • FM and ATEX/IECEx certified for hazardous locations in U.S., Canada, and Europe
  • 3-year warranty
  • Lightweight: 1.8 lbs. (0.8 kg)

Specifications

Brand

Pressure Range

  • 0 to 138 inH2O (0 to 5 psid) thru 0 to 500 psid

Overpressure Rating

  • HI & LO Side: 15 to 1,500 psid

Analog Output

  • 1-5 Vdc (Low Power)
  • 4-20 mA

Communication

  • HART 7
  • Modbus RTU

Output Signal Characteristic

  • Linear (Default) Square Root Strapping Table

Accuracy

  • ± 0.25 % of URL

Response Time

  • < 70ms

Supply Voltage

  • 10-36 Vdc
  • 18-36 VDC (with LCD)

Field Calibration

  • External Magnetic Targets HART® 7 / Modbus RTU

Approvals & Certifications

  • ATEX/IECEx, CRN, Dual Seal (Canada), FM (US and Canada)
  • EMC

Process/Storage Temperature

  • -40° to 90° C (-40° to 194° F)

Compensated Temperature

  • -40° to 80° C (-40° to 176° F)

Ambient Temperature

  • -40° to 80° C (-40° to 176° F)

Temperature Effect

  • ± 1% URL/100° F @ -40 to 130° F

Stability

  • Long Term: ≤ ± 0.5 % URL Per Year

Loop Resistance

  • 667 ohms at 24 Vdc

Housing Material

  • 316 Stainless Steel CF8M)

Process Connection

  • 1/4" NPT Female (HI & LO Side)

Electrical Connection

  • Electrical Conduit: 3/4" NPT Female - Display
  • 8 AWG shielded cable, 72-inch length
  • 1/2” NPT(M)

Wetted Materials

  • 316/316L Stainless Steel

Max Static Line Pressure

  • 1,000 psi

Burst Pressure

  • 4 times FSPR

Circuit Protection

  • Reverse Polarity
  • EMC (EMI/RFI) Protected

  • Monitor & Control Many Process Applications
  • Oil & Gas Applications
