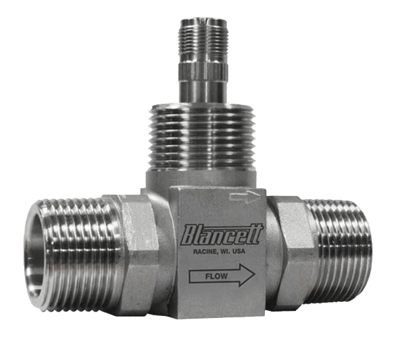

Model 1100 Turbine Flow Meter
Brand: Badger MeterThe Blancett® Model 1100 Turbine flow meter is designed to withstand the demands of the most rigorous flow measurement applications, both on and off the oilfield.
Features
- Simple Installation. Built for simple installation and service, requiring a minimum of 10 diameters upstream and 5 diameters downstream straight pipe length
- Flexible Operation. Designed to operate in any orientation (horizontal to vertical) as long as the flow direction arrow is aligned with the actual line flow
- Durable Construction. Features a rugged 316 stainless steel housing and rotor support assemblies with CD4CU stainless steel rotor
Specifications
Brand
Temperature Range
- -150° to 425° F (-101° to 232° C)
Flow Range
- 2.27 - 18,930 Lpm (0.6 - 5,000 gpm)
Pressure Range
- Up to 5,000 psi (344.74 bar)
Accuracy
- ± 1 %
Approvals & Certifications
- UL, CSA
Body & Rotor Support Material
- 316 Stainless Steel
Rotor Shaft
- Tungsten Carbide
Rotor Material
- CD4MCU Stainless Steel
- Concrete Production & Consolidation
- Wastewater Treatment
- Oil & Gas
- Industrial Process
- Refining, Chemical & Petrochemical
