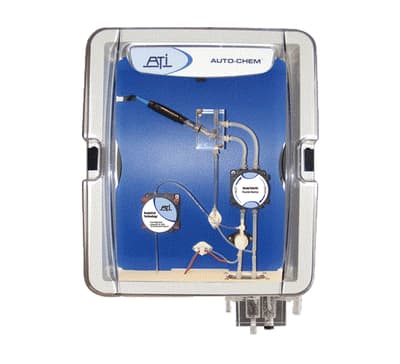

Q46F Fluoride Monitor

Brand: Analytical Technology Inc
Request Information
Favorite

Analytical Technology Fluoride Monitor, Q46F
The Q46F/82 is an on-line monitoring system designed for the continuous measurement of fluoride ion in solution.

The full scale operating range of the system may be selected by the user for 0-20.00 PPM, 0-200.0 PPM, or 0-2000 PPM.

The analog output signal may be spanned for smaller ranges within the overall operating ranges, if desired.

Q46F/82 chemistry modules are designed to operate on sample temperatures from 0-50°C.

Because water is flowing through the chemistry module at a low rate, this unit cannot be exposed to temperatures below 0°C.
Features
  • Analog Output Options for fluoride and temperature.
  • PID Output Control Functions
  • Digital Communications options for Profibus-DP, Modbus-RTU, or Ethernet-IP.
  • Auto-Chem Sensor Preamplifier module
  • Relay Output Options
  • Flexible Mounting Options
  • Large, Back-Lit LCD Display

Specifications

Brand

Display Range

  • 0-20.00, 0-200.0, 0-2000 ppm

Accuracy

  • 1.0 % of Selected Range or 0.10 ppm

Repeatability

  • 0.5 % of Selected Range or 0.05 ppm

Non-Linearity

  • 0.5 % of Selected Range

Temperature Drift

  • 0.01 % of Span/°C

Power

  • 100-240 Vac ± 10 %, 50/60 Hz, 10 VA Max.

Analog Outputs

  • Two Isolated 4-20 mA, 500 Ω load Max.

Temperature Compensation

  • Automatic 0-40° C

Relays

  • Three SPDT, 6A @ 250 Vac, 5A @ 24 Vdc

Display

  • 4 Digit, 0.75” Numeric LCD with 12 Character Second Line, LED Back Light.

Enclosure

  • NEMA 4X (IP-66) Polycarbonate, V-0 Flammability

Operating Temperature

  • -20° to 60° C (-4° to 140° F)

Weight

  • 2.5 lbs (1.1 Kg)

Operating Conditions

  • 0 to 50° C

Automatic Calibration

  • Programmable Every 24-999 Hours

Fluoride Sensor

  • Combination Fluoride ISE Sensor

Sensor Cable

  • 10 ft standard, 300 ft Max.

Sensor Response Time

  • T90 = 50 Seconds

Sensor Sample Pump

  • Internal Tubing Pump, 15 cc/min

Sensor Buffer Pump

  • Internal Tubing Pump, 0.1 cc/min

Sensor Measurement Chamber

  • Cast Acrylic

Sensor Temperature Limits

  • 2-40° C

Sensor Inlet Sample Flow Rate

  • 5-20 GPH at Inlet Overflow Assembly

Sensor Sample Inlet

  • 1/4” I.D. Hose Barb

Sensor Sample Drain

  • 1/2” I.D. Hose Barb

Sensor Power

  • 115 or 230 Vac, 50/60 Hz

Sensor Weight

  • 15 lbs (6.8 Kg)

Sensor Enclosure

  • Kydex with Acrylic Cover, V-O Flammability

  • Potable Water Systems
  • Semi-Conductor Wastewater Systems
