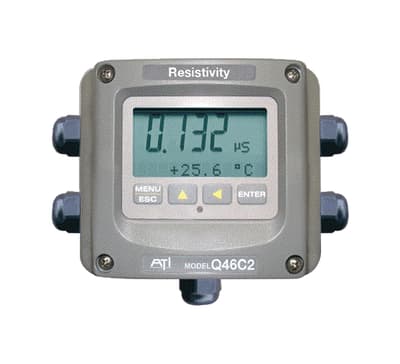

Q45C2 2E Resistivity Transmitter

Brand: Analytical Technology Inc

Specifically designed for use in ultra-pure water and non-fouling applications, ATi’s Q45C2 2E Resistivity Transmitter provides reliable and accurate low-level measurements for high-purity water systems.

The 2-Electrode sensors are available in several mounting configurations, including 316SS compression fittings or sanitary-style.

For applications where results in resistivity units are preferred, the Q45C2 2E can be programmed to display readings in Meg-ohm units instead of microSiemens.

The transmitter employs 2-Electrode conductivity sensors with low cell constants to provide continuous water quality measurements from 0-20 to 0-2,000 microSiemens.

These sensors may also be mounted submersion-style or in a hot-tap configuration.
Features
  • Concentration version for direct display of chemical concentrations. Also available in a TDS (Total Dissolved Solids) version. Customized Response:
  • A user configurable table for a custom concentration curve is available. Analog Output Options:
  • Two isolated 4-20 mA outputs are standard. Default setting provides Analog outputs for conductivity and temperature. AC or DC Power Options:
  • Power options include 115/230 Vac. PID Output:
  • Standard PID control function assignable to one Analog output. Relay Contacts:
  • Two SPDT relays are standard, with relay functions programmable for alarm, control, or trouble indication. Flexible Mounting:
  • NEMA 4X (IP-66) enclosure is suitable for wall, pipe or panel mounting. Clear Display:
  • Back-lit large LCD display provides clear visibility in any lighting condition. A scrolling second line on the display provides additional information and programming prompts.

Specifications

Display Range

  • Conductivity: 0-2.000, 0-20.00, 0-200.00, 0-2000 µS
  • Resistivity: 0-20.00 MΩ, 0-200.0 kΩ

Accuracy

  • 0.1 % of Selected Range

Repeatability

  • 0.1 % of Selected Range

Sensitivity

  • 0.05 % of Selected Range

Linearity

  • 0.1 % of Selected Range

Temperature Drift

  • 0.1 % of Span/°C

Sensor Type

  • Two-Electrode, 0.05K, 0.5K, or 1.0K Cell Constant

Temperature Input

  • Either Pt1000 or Pt100 for Temperature Compensation

Power

  • 2- Wire Unit: 17-30 Vdc, 25 mA Max.
  • Battery Unit: Two AA alkaline Batteries
  • External DC: 5-17 Vdc, 10 mA Max.

Analog Outputs

  • 2-Wire Unit: Single 4-20 mA DC, 450 ohms Max.
  • Battery Unit: Two 0-2.5 Vdc, 50K ohms Min.
  • External DC: Two 0-2.5 Vdc, 50K ohms Min.

Output Isolation

  • 600 V Galvanic Isolation

Enclosure

  • NEMA 4X (IP-66) Polycarbonate, V-0 Flammability

Mounting Options

  • Wall or Pipe Mounting Bracket Supplied

Conduit Entries

  • Two PG-9 Cord Grips, 0.16 - 0.31” Diameter Cable

Ambient Temperature

  • Storage: -40° to + 70° C
  • Operating: -40° to + 60° C

Ambient Humidity

  • 0-95 %, Non-Condensing

Size

  • 4.4”H x 4.4”W x 3.5”D (111 x 111 x 90 mm)

Weight

  • Battery unit: 2 lbs (0.9 Kg)
  • 2-Wire or External DC unit: 1 lb (0.45 Kg)

Certifications

  • CE marked to BS EN 61326-1:2006 Standard
  • UL and CSA General Purpose

Sensor

  • In-Line or 1-1/2” Sanitary Style

Sensor Cell Constants

  • 0.05K or 0.5K

Sensor Wetted Materials

  • Titanium Electrodes
  • 316SS Fittings

Sensor Temperature Element

  • Pt1000 RTD

Sensor Cable

  • 6 Conductor Plus 2 Shields, HDPE Jacket

Sensor Temperature Range

  • -10° to 125° C (14° to 257° F)

Sensor Pressure Range

  • 0 to 100 psig

Sensor Maximum Flow Rate

  • 10 Feet (3 Meters) Per Second

Sensor Maximum Cable Length

  • 60 Feet (18.3 Meters)

  • Reverse Osmosis Systems
  • Deionisation Systems
  • Boiler Feed Water
  • Return Condensate
  • Pharmaceutical Water
  • Semiconductor Water
  • Desalination Systems
