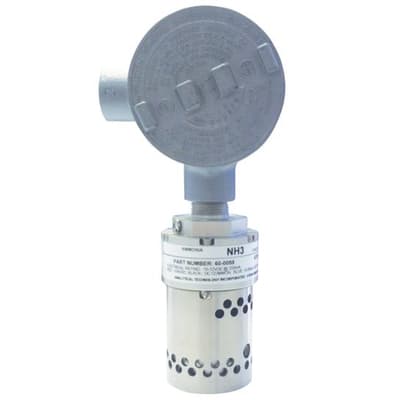

Images are representations only.
E12-15 High Level Ammonia Gas Detector
Brand: Analytical Technology IncThe Model E12-15 IR Infrared Gas Detector is a rugged reliable microprocessor based intelligent gas detector.
The E12-15 IR can be used to monitor from PPM levels to explosive levels of ammonia gas.
The E12-15 IR is ideally suited for use in harsh environments where electrochemical sensor life can be short.
Areas such as engine rooms, emergency vents, or other high level NH3 areas are excellent applications.
The E12-15 IR Infrared Gas Detector will perform reliably in the presence of silicone and other catalytic poisoning agents and can also operate in oxygen free environments or where high background gas levels are present.
Features- Requires no routine calibration to ensure proper operation
- Continuous self-test automatically indicates a fault, with fail to safe operation
- A multi-layered filtering system protects optics from dirt and water ingress
- Straight optical path eliminates the need for reflective surfaces, such as mirrors or beam splitters
- Highly resistant to poisoning and etching
- Standard 4 to 20 mA output (current source)
- Explosion proof housing designed for harsh environments
- Engine Rooms
- Emergency Vents
