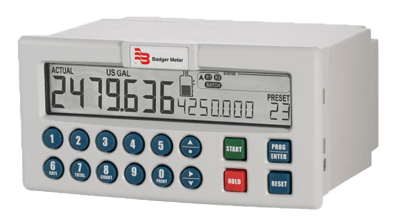

Model PC200 Industrial Process Controller
Brand: Badger MeterThe Badger Meter PC200 is a microprocessor-driven instrument designed for batching and filling both small and large quantities, as well as displaying total, accumulated total and flow rate.
Designed to interface with our complete line of industrial flow meters, it totalizes, indicates and controls fluid flows.
Many years of experience in the industrial market has allowed Badger Meter to incorporate features indispensable in the liquid batching and control operations.
Features
- Ease-of-use with the numerical keyboard
- Ruggedness for its application with a robust enclosure, keyboard and proper mechanical relays
- Clear operator information: all relevant data can be monitored in one glance
- User-friendly installation with quality plug-and-play terminals; suitable for both AC and DC applications (standard)
- A wide range of inputs, outputs and functions for a broad fulfillment in many applications
Specifications
Brand
Operating Temperature
- -4° to 140° F (–20° to 60° C)
Storage Temperature
- -40° to 176° F (–20° to 80° C)
Humidity
- 85% RH, Non-condensing
Power
- 85-265 Vac
- 24 Vdc + 10%
- Sensor Excitation: 8.2 / 12 or 24 VDC selectable; max. 50 mA
Terminal Connection
- Removable plug-in terminal strip; wire max. 2.5 mm2 (0.1 in2 )
Approvals & Certifications
- EMC
- CE and FPP certified
