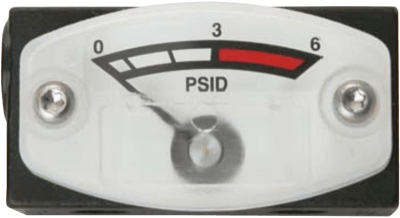

Model 127 OEM Piston Type Differential Pressure Indicator/Switch

Brand: Mid-West Instrument

Specifications

Accuracy

  • ± 5 % of Full Scale

Enclosure, Body Material

  • 316 Stainless Steel
  • Aluminum

NPT Connection

  • 1/8” NPT Female

Operating Temperature

  • -40° to 93° C (-40° to 200° F)

Pressure Type

  • Differential

Seat / Seal Material

  • Seal: Buna-N
  • Seal: Ethylene Propylene (EPR)
  • Seal: Neoprene
  • Seal: Viton

Set Point - Decreasing

  • bar: 0 to 7
  • kPa: 0 to 700
  • psid: 0 to 100

Set Point - Increasing

  • bar: 0 to 7
  • kPa: 0 to 700
  • psid: 0 to 100

Switch Type

  • SPDT 3 W, 125 Vac/dc, 0.25 A
  • SPST 60 W, 240 Vac/dc, 3 A

System Pressure

  • bar: 200
  • kPa: 20,000
  • psig: 3,000

  • Filter monitoring
  • Strainer monitoring
  • Water system applications
  • Refrigerant filtration systems
