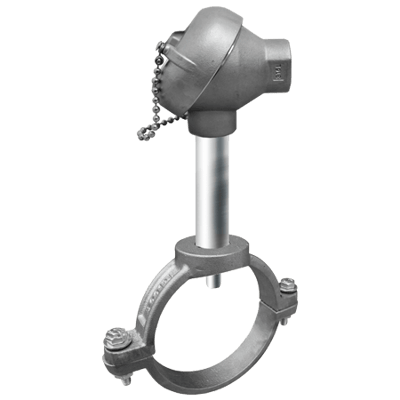

Type 1550 Pipe Clamp Temperature Sensor

Brand: SOR Inc

For heavy duty industrial surface temperatures use Type 1550.

The black carbon steel nipple is welded to the black carbon steel pipe clamp adapter and the thermocouple is spring loaded and maintains constant contact with the measuring surface.

“A” length is normally determined by the insulation thickness surrounding the pipe.

Sensor replacement requires no disassembling.

For use with pipes 4" (10.16 cm) in diameter or larger.

Specifications

Brand

Enclosure, Body Material

  • Head Typical (Sanitary): Polypropylene
  • Head Typical: Aluminum (Cast, Flip Top)
  • Head Typical: Cast Stainless Steel
  • Head Typical: Iron (Cast, Flip Top)

Environmental Protection

  • Explosion-proof
  • IP66
  • IP68
  • NEMA 4X

Junction

  • Dual Grounded
  • Dual Ungrounded
  • Grounded
  • Ungrounded

Materials of Construction

  • Nipple, Pipe Clamp: Black Carbon Steel

Pipe Size

  • 4” (10.16 cm) or Larger

Sensor, Probe Type

  • J Thermocouple (Iron Constantan)
  • K Thermocouple (Chromel Alumel)
