CMM Dial Pressure Gauge

Brand: Heise

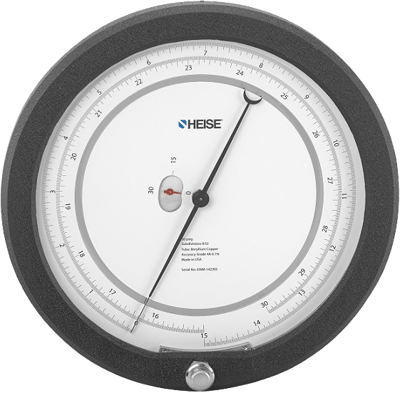

The Heise® model CMM precision pressure gauge yields consistent, reliable accuracy through the use of precision machining and refined Bourdon tube technology.

Pointer rotation of up to 660 degrees with up to 1600 divisions offers high resolution to easily support tight tolerances.

As a mechanical instrument, the gauge does not require a power supply.

In addition, this mechanical instrument is simple to operate, easy to troubleshoot and can be readily flushed or purged to remove foreign matter or trapped gas.

That’s why the Heise® precision dial gauge continues to be the #1 choice in ASME B40.100, grade 4A precision mechanical pressure instrumentation.
Features
  • Accuracy ±0.1% of span
  • Gauge, Compound and Vacuum ranges
  • Pressure ranges 30 to 10,000 psi
  • 660 degree of pointer rotation
  • Includes small “scale indicator” pointer
  • Mirror-band dial and knife-edge pointer eliminates paralax error while assuring easy readability of precise measurements
  • Solid-front case design and blow-out safety back protect users from extreme overpressure
  • Optional Thermal Compensation – to maintain accuracy over a wide temperature range from -25° to +125°F

Specifications

Brand

Sizes

  • 6”
  • 8”
  • 12”

Process Connection Location

  • Back
  • Bottom

Case Style

  • Solid Front

Accuracy

  • ± 0.1 % of Span accuracy

Process Connections

  • 9/16-18 UNF-2B Female back connect above 10,000 psi
  • 1/4” Female NPT back connect up to 10,000 psi

Certifications & Approvals

  • ISO 17095 calibration
  • NIST traceable calibration

  • Test Laboratories
  • Precision Test and Measurement Validation
  • Calibration Laboratories
