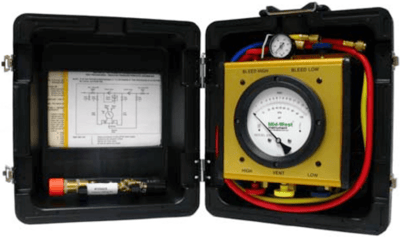

Model 830 Backflow Prevention Assembly Test Kit

Brand: Mid-West Instrument

The 830 is in the list of Acceptable gauges from both FCCC & HR-USC and CA-NV AWWA.

Model 830 (5) valve kit provides the capability for testing all brands of reduced pressure principle, pressure vacuum breaker and double check valve backflow prevention assemblies.
Features
  • Industry standard for over 30 years
  • (5) valve test kit
  • Specially designed for testing backflow prevention assemblies
  • Soft-seated brass needle valves (with replaceable valve seats)
  • Test kit is protected with 90 micron filters to minimize plugging with scale, sand, etc. Filter elements can be cleaned or replaced
  • Durable molded carrying case with removable lid
  • Test procedures are laminated in clear plastic

Specifications

Approvals & Certifications

  • AWWA
  • CSA
  • FCC

Enclosure, Body Material

  • Glass Reinforced Engineering Thermoplastic

Measuring Range

  • psid: 0 to 15 (kPa: 0 to 100, bar: 0 to 1)

Operating Pressure

  • psig: 200 (kPa: 1,379, bar: 13.79)

Size

  • Dial: 4-1/2” (114.3 mm)

Temperature Range

  • Maximum
