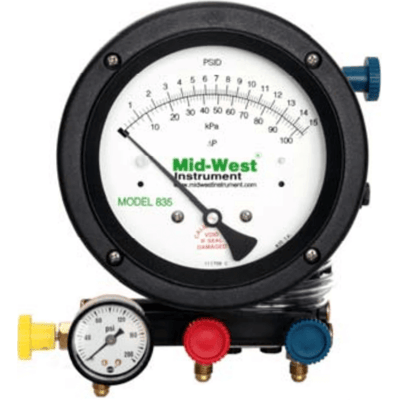

Model 835 Backflow Prevention Assembly Test Kit
Brand: Mid-West Instrument
The 835 is in the list of acceptable gauges from both FCCC & HR-USC and CA-NV AWWA.
Features- Over 30 years of input from backflow technicians
- Specially designed for testing backflow prevention assemblies
- Test kits are protected with 90 micron filters to minimize plugging with scale, sand, etc.
- Filter elements can be cleaned or replaced
- Test procedures are laminated in clear plastic
- Durable carrying case included
.
Specifications
Brand
Approvals & Certifications
- AWWA
- CSA
- FCC
Enclosure, Body Material
- Glass Reinforced Engineering Thermoplastic
Measuring Range
- psid: 0 to 15 (kPa: 0 to 103.4, bar: 0 to 1.034)
Operating Pressure
- psig: 200 (kPa: 1,379, bar: 13.79)
Size
- Dial: 4-1/2” (114.3 mm)
Temperature Range
- Maximum
