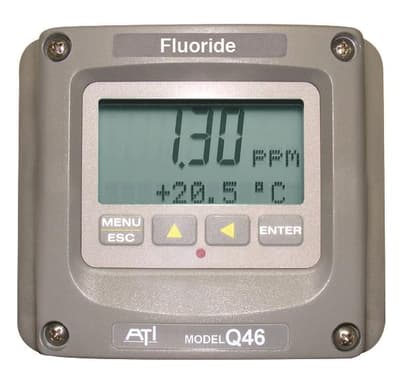

Q46F/D Direct Fluoride Monitor
Brand: Analytical Technology Inc/Q46F-D-Direct-Fluoride-Monitor/488524_Q46F_D_Direct_Fluoride_Monitor_2.jpg)
The Q46F/82 Direct Fluoride System is an on-line monitoring system designed for the continuous measurement of fluoride ion in solution.
The system is designed to measure fluoride ion directly without the use of chemical buffers and is suitable for potable water systems with stable pH and conductivity.
It is especially useful for applications where the use of chemicals is undesirable
Features- Easy to install
- Large, easy-to-read LCD display
- Can be supplied with the fluoride monitoring system factory mounted on a panel containing all necessary flow controls and a visual flow indicator
Specifications
Display Range
- 0-20.00 ppm Min., 0-2000 ppm Max.
Accuracy
- ± 1 mV Concentration Equivalent (0.1 ppm at 1 ppm, 0.5 ppm at 10 ppm)
Repeatability
- ± 0.5 mV Concentration Equivalent
Drift
- < 0.5 ppm per Month on 20 ppm Scale (Stable pH & Conductivity)
Power
- 100-240 Vac, 50/60 Hz, 10 VA Max.
- 12-24 Vdc, 500 mA Max.
Analog Output
- Two Isolated 4-20 mA, 500 Ω load Max.
Relays
- Three SPDT, Contacts Rated 6 amp @ 250 Vac, 5 amp @ 24 Vdc
Digital Output
- Options for Profibus-DP, Modbus RTU & TCP/IP, or Ethernet-IP
Display
- 4 Digit, 0.75” Numeric LCD with 12 Character Second Line, LED Back Light
Enclosure
- NEMA 4X (IP-66) Polycarbonate, V-0 Flammability
Operating Temperature
- Electronics: -20-60° C
Fluoride Sensor
- Combination Fluoride ISE Sensor
Sensor Cable
- 10 Feet Standard
Sensor Response Time
- T90 = 60 Seconds
Sensor Measurement Chamber
- Cast Acrylic
Sensor Inlet Sample Flow Rate
- 1-6 GPH Through Flowcell (0.06 - 0.40 LPM)
Sensor Sample Inlet
- 1/4” O.D. Instant Tube Fitting
Sensor Sample Outlet
- 1/4” O.D. Instant Tube Fitting
Sensor Operating Temperature
- 2-50° C
Sensor pH Range
- 5-9 pH but Stable to ± 0.2 pH
Sensor Conductivity
- Stable to ± 50 µS
Sensor Inlet Pressure
- Control to < 5 psi (0.3 bar) 5-150 psi (0.3-10 bar) for Flow Plate Assembly
- Reliable control of chemical addition for a consistent fluoride concentration
- Continuous measurement of free fluoride concentration in potable water without sample conditioning
- For use where pH and conductivity of the water are relatively stable
