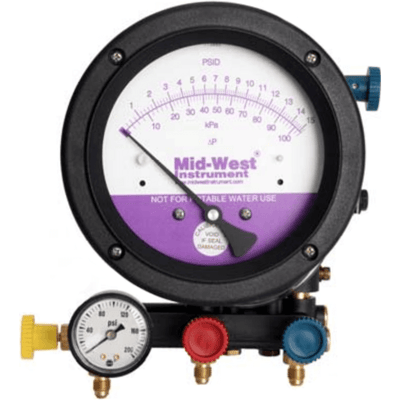

Model 845-5-NP Backflow Prevention Assembly Test Kit

Brand: Mid-West Instrument

Backflow Test Kits provide the capability for testing all brands of Reduced Pressure Principle, Pressure Vacuum Breaker, Spill Resistant Vacuum Breaker and Double Check Valve backflow prevention assemblies.
Features
  • Easily identify gauge & hoses for NON-POTABLE service
  • (5) Valve Test Kit
  • Specially designed for testing backflow prevention assemblies
  • Soft-seated brass needle valves (with replaceable valve seats)
  • Test kits are protected with 90 micron filters to minimize plugging with scale, sand, etc.
  • Filter elements can be cleaned or replaced
  • Improved case with storage compartments for fittings & tools
  • Test procedures are laminated in clear plastic

Specifications

Accuracy

  • ± 0.2 psid

Approvals & Certifications

  • AWWA
  • CSA
  • FCC

Enclosure, Body Material

  • Glass Reinforced Engineering Thermoplastic

Measuring Range

  • psid: 0 to 15 (kPa: 0 to 103.4, bar: 0 to 1.034)

Operating Pressure

  • psig: 200 (kPa: 1,379, bar: 13.79)

Size

  • Dial: 4-1/2” (114.3 mm)

Temperature Range

  • Maximum
