Mid-West Precision Flow Test Kit, Model 820
Images are representations only.

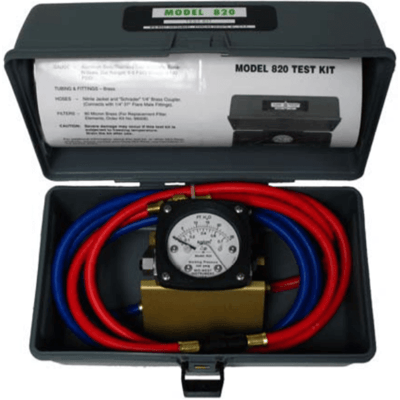

Model 820 Precision Flow Test Kit

Brand: Mid-West Instrument
Request Information
Favorite

Rugged Medium Duty Portable Test Kit.

This test kit is equipped with a ±3-2-3% of full scale accuracy (ascending) piston type differential pressure gauge.

Popular applications include but are not limited to, measuring pressure drop across various types of equipment, filters, checking pump performance, balancing valves, checking equipment for excessive pressure drop, leakage, etc.
Features
  • Over 30 Years of Input from Professional Testing Technicians
  • Test kit is protected with 90 micron filters to minimize plugging with scale, sand, etc. Filter elements can be cleaned or replaced
  • Durable molded plastic carrying case with removable lid
  • Test procedures are laminated in clear plastic

Specifications

Brand

Accuracy

  • ± 3-2-3 % of Full Scale

Enclosure, Body Material

  • Gauge: Aluminum

Measuring Range

  • psid: 0 to 100 (kPa: 0 to 689.5, bar: 0 to 6.895)

Operating Pressure

  • psig: 500 (kPa: 3,447, bar: 34.47)

Size

  • Dial: 2-1/2” (63 mm)

Temperature Range

  • Maximum

Documentation
