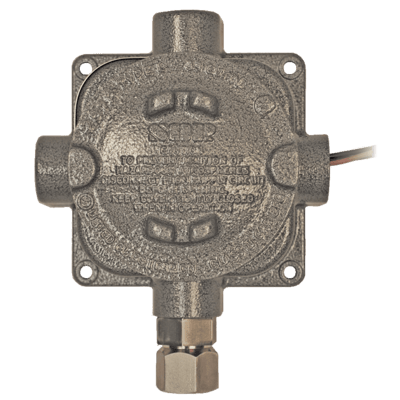

401 Bourdon Tube Pressure Switch
Brand: SOR Inc
The SOR 401 Bourdon Tube Pressure Switch is well suited for high pressure applications - particularly when high repeatability and narrow dead band are required.
Wetted materials of 316 Stainless Steel provide excellent resistance to corrosive media.
An integral snubber protects the pressure sensing assembly from pressure surges.
Features- Limited travel 316 Stainless Steel bourdon tube with counterbalance spring - high repeatability and narrow deadband.
- Set point easily adjusted by varying tension of counterbalance spring.
- Excellent resolution of set points.
- Rugged construction.
- Explosion proof and weathertight housings.
- Three year warranty.
Specifications
Brand
NPT Connection
- 1/4" NPT Female
Environmental Protection
- NEMA 4X
- Explosion-Proof
Approvals & Certifications
- UL
Set Point - Decreasing
- bar: 68.95 to 137.9
- kPa: 6,895 to 13,790
- psi: 1,000 to 10,000
Set Point - Increasing
- bar: 68.95 to 137.9
- kPa: 6,895 to 13,790
- psi: 1,000 to 10,000
Electrical Connectors
- 1/2" NPT Female
- 3/4" NPT Female
Deadband, Approximate
- bar: 6.2 to 12.4
- kPa: 620.5 to 1,241
- psig: 90 to 180
Overrange Pressure
- bar: 413.6 to 827.3
- kPa: 41,368 to 82,737
- psig: 6,000 to 12,000
Enclosure, Body Material
- Copper-Free Aluminum
