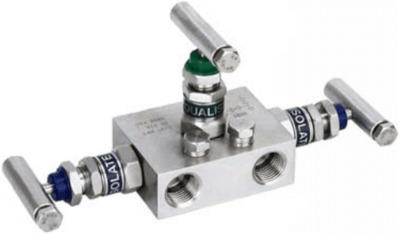

3 & 5-Valve Differential Pressure Manifold
Brand: Mid-West Instrument
3 & 5 valve manifolds are designed for applications where direct mounting to an instrument is impractical or undesirable.
The manifold is mounted to the lines from the instrument and signal rather than directly to instrument.
Bubble tight shut-off, lightweight, super strong construction, compact designs that require less parts, chrome plated stems that prevent galling and stripping- these valves are built to perform under pressure.
That’s why in some of the most rigid tests, manifolds provided by Mid-West Instrument consistently meet or exceed industry standards.
Features- Pressure rating: 6,000 psiG (414 bar) @ 240° F (115° C)
- Instrument connections: Std. 3 & 5 Valve = ½” Female NPT / 3-Valve Mini-Manifold = ¼" Female NPT
- Process connections: Std. 3 & 5 Valve = ½” Female NPT / 3-Valve Mini-Manifold = ¼" Female NPT
- Dust cap: protects spindle threads from dirt & dust
- Gland Nut & Lock Nut: Adjusts the packing compression to provide leak free operation even on vacuum service
- Gland Packing: PTFE packing and metal seal ring ensures leak free operation
- Bonnet: Precisely machined bonnet adds a high level of reliability at maximum pressure & temperature while increasing valve life and protecting stem threads from atmospheric corrosion
- Isolated Stem threads: Adjustable packing below stem ensures leak proof long service life
- Less Parts: Less leak points and less fugitive emissions
- Test Ports: ¼” Female NPT ports which may be used as test connections (#107470 & #107469) (#113343 Mini-manifold does not have test ports)
Specifications
Brand
Enclosure, Body Material
- 316 Stainless Steel
NPT Inlet
- 1/2” NPT Female
- 1/4” NPT Female
NPT Outlet
- 1/2” NPT Female
- 1/4” NPT Female
Packing Material
- Gland Packing: PTFE
- Teflon
Valves
- Five
- Three
