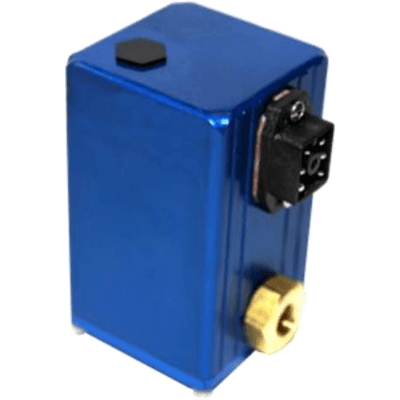

BVISQB Series Electro-Pneumatic Pressure Regulator
Brand: Burling ValveThe BVISQB1 series control valve is an electronic pressure regulator designed to precisely and proportionally control the pressure of gaseous media based on an electronic control signal.
The BVISQB1 operates using two normally closed solenoid valves, a pressure sensor, and a control circuit. One valve is actuated to allow supply media into the system. The second valve is actuated to allow working media to vent through a threaded port to atmosphere. The pressure sensor provides feedback to the control circuit.
The control circuit compares the pressure sensor feedback to the user supplied electronic command signal and actuates the appropriate valve until the two signals match.
The BVISQB1 series can be teamed with a variety of air piloted pressure volume boosters for even greater flow.
Specifications
Brand
Approvals & Certifications
- FM Class I, II & III, Div. 1, Groups C, D, E, F & G
BSP Connection
- 1/8” BSPP Female
Enclosure, Body Material
- Blue Anodized Aluminum
Environmental Protection
- IP66
- NEMA 4
NPT Connection
- 1/8” NPT Female
Pressure Range
- bar: 0 to 10.3
- Inches Hg: -29.92 to 0
- kPa: 0 to 1,030
- psig: 0 to 150
Supply Pressure - Maximum
- bar: 10.3
- kPa: 1,030
- psi: 150
